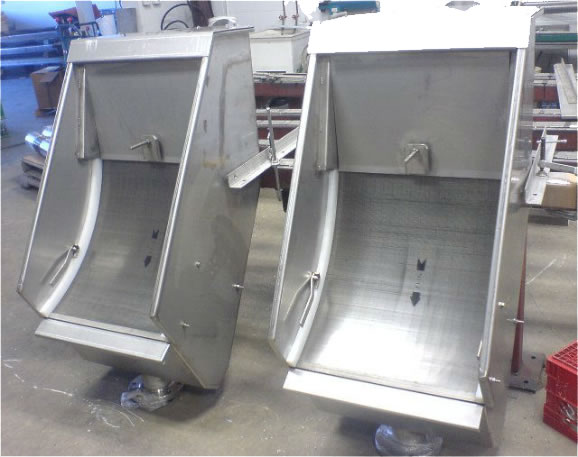

    Bolhes supplies wedge wire screen structured sieve bends for sugar mill or mineral processing uses. This is a type of curved screen or arc screen with solid surface and long service life. Also named DSM screen or rundown screen.

    Aperture: 0.05-45mm
    material: SS304,316,316L
    Filter rating high
    Heat- Resistanc, corrosion resisting

    The fine wedge (curved screen) is the purpose of an external high-speed pumping fluid material flowing into the arc mesh, relying on centrifugal force and gravity of the water in the sieve gate relative shear movement, separating the solids and liquids to sieve. The same time, the online gathering solids, with the flow rolling down liquid continuously hydraulic erosion sieve gate, making it play a role in self-purification, thus completing the whole process of sieve continuous self-purification and solids collected.

    Features: Efficient separation with sharp cut;Unique profile wire welded wege wire sieve bend;Safe and stand equipment;Simple screen replacement design;Pneumatically operated washing jet for screen surface.

    Applications: Sugar mill; Mineral processing;Waste water cleaning up;Condensate water filtration;Column bottoms purification;45°DSM screen is suitabe for thickening and screens;120°DSM screen is used for separating water suspension.
