  • Perforated Screen - Punched Plate Metal with Solid and Accurate Holes

    Perforated Screen is a kind of metal sheet with meshes or openings punched on stainless steel plate, galvanized steel sheet or other materials. Perforated metal screen has solid holes and it is used in metal sieves processing for certain heavy particle sizing. The advanced computer numerical control equipment is used to punch through the mould pressing and become screen products.

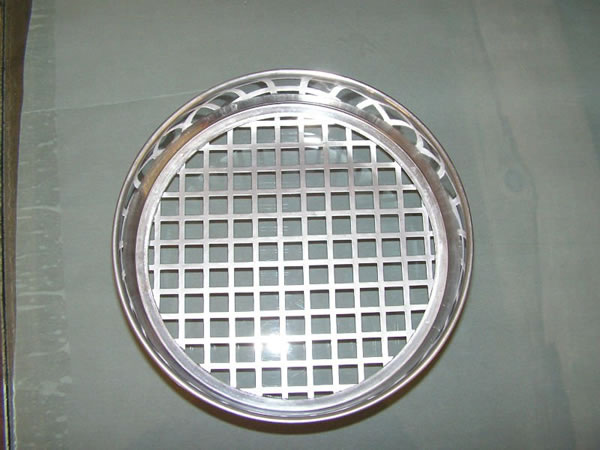

    Perforated Screen Processed Metal Sieve
    Perforated Screen Processed Metal Sieve

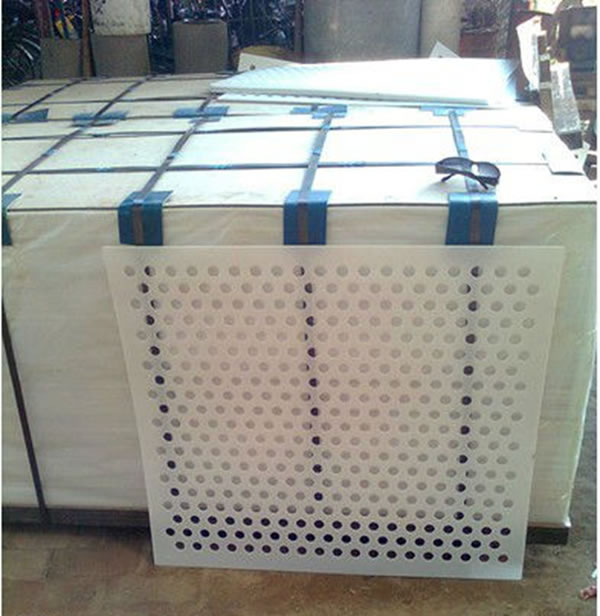

    perforated screen

    The raw material: stainless steel board, aluminum board, cold and hot steel board,copperplate and fiberboard, plastic board and so on.

    Specification:
    (1)Cold rolled steel sheet
    Thichness:0.2mm-1mm
    Length:1m-20m
    Hole Diameter:0.8mm-10mm

    (2)Plate
    Thickness:0.3mm-10mm
    Size:≤1.5×3m
    Hole Diameter:0.8mm-100mm
    The specification only for reference, it can be done according to the requests of the customers.

    Hole shape: long square hole, square hole, round hole,triangle hole, hexagonal hole, the plum blossom hole, ichthyosisthe hole,scale hole and other different kinds of hole,The company can process the different kinds of type accroding the customer order.

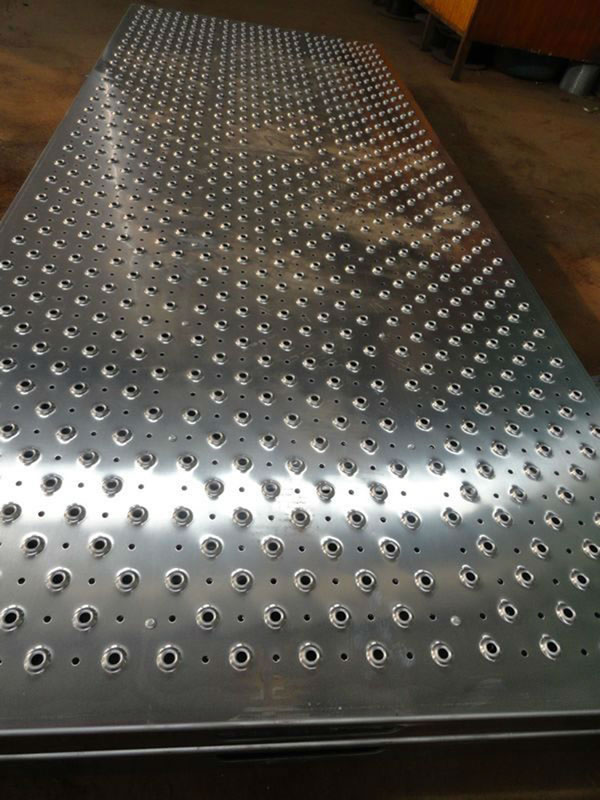

    Perforated Metal

    Characteristics of the perforated metal screen sheet:

    1. Can be readily formed

    2. Easy installation

    3. Can be painted or polished and anodizing.

    4. The thickness of materials is wide range from 0.3mm-8mm.

    5. Largest selection of hole size patterns and configurations

    6. Uniform sound abatement(aluminum perforated metal)

    7. Attractive appearance,

    8. Light weight,

    9. Durable

    Specifications of Perforated Screen

    material thickness
    (mm)
     Aperture (mm) hole spacing(mm)  wide
    (m)
    length
    (m)
    punching rate
    (%)
    weight
    (kg/m2)
    Coil sheet 0.2 6 2 1 20 44 0.88
    0.35 5 4 1 20 24 2
    0.45 6 3 1 20 35 2.5
    0.8 3 3 1 20 19.6 3
    Flat sheet 0.5 1 1 1 2 19.6 3.14
    0.8 1.5 1.5 1 2 19.6 5
    1.5 2 2 1 2 19.6 9.4
    3 5 16 1 2 19.6 18.8
    stainless metal plate 0.5 1 1 1 2 19.6 3.14
    0.8 1.5 1.5 1 2 19.6 5
    1 2 2 1 2 19.6 6.28
    2 5 16 1 2 19.6 6.28
    aluminium plate 0.5 1 1 1 2 19.6 1.08
    0.8 3 3 1 2 19.6 1.72
    1.5 2 2 1 2 19.6 3.24
    2 4 16 1 2 19.6 4.23
