Brass Woven Wire Mesh Screen

According to the production process, brass mesh can divide into brass woven mesh, brass expanded mesh and perforated mesh, and brass or copper knitted wire mesh.

We supply wire mesh test sieves and pack filters made of brass woven mesh cloth. Bolhes also supplies samiliar mesh products including copper wire cloth and phosphor bronze wire cloth.

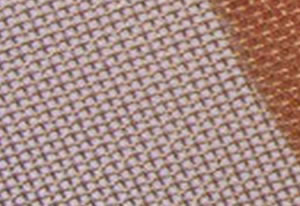

Brass mesh screen

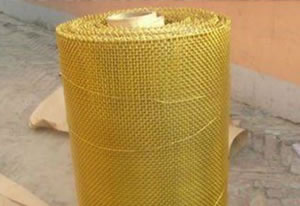

Brass mesh cloth

Material: phophor Brass Wire Mesh,copper Wire Mesh/cloth,brass wire mesh,phosphor bronze wire mesh.

Common specs:
brass wire cloth :6mesh/inch-160mesh/inch
copper wire cloth 10mesh/inch-60mesh/inch
phosphor bronze wire cloth:120mesh/inch-360mesh/inch

Width: 0.914M, 1M, 1.5M
Length/roll: 30M
Weaving Types: Plain weave, twill weave or Dutch weave.

Brass wire mesh screen is mainly used for weakly acidic, weakly alkaline condition of liquid or particulate filter, industrial equipment, electrodes, the electrode of the battery industry, the radio signal shielding.

Specification List of Brass Mesh Screen

Mesh Wire Dia. Opening(mm)
SWG mm inch
6mesh 22 0.711 0.028 3.522
8mesh 23 0.610 0.024 2.565
10mesh 25 0.508 0.020 2.032
12mesh 26 0.457 0.018 1.660
14mesh 27 0.417 0.016 1.397
16mesh 29 0.345 0.014 1.243
18mesh 30 0.315 0.012 1.096
20mesh 30 0.315 0.0124 0.955
22mesh 30 0.315 0.0124 0.840
24mesh 30 0.315 0.0124 0.743
26mesh 31 0.295 0.0116 0.682
28mesh 31 0.295 0.0116 0.612
30mesh 32 0.247 0.011 0.573
32mesh 33 0.254 0.010 0.540
34mesh 34 0.234 0.0092 0.513
36mesh 34 0.234 0.0092 0.472
38mesh 35 0.213 0.0084 0.455
40mesh 36 0.193 0.0076 0.442
42mesh 36 0.193 0.0076 0.412
44mesh 37 0.173 0.0068 0.404
46mesh 37 0.173 0.0068 0.379
48mesh 37 0.173 0.0068 0.356
50mesh 37 0.173 0.0068 0.335
60X50mesh 36 0.193 0.0076 -
60X50mesh 37 0.173 0.0068 -
60mesh 37 0.173 0.0068 0.250
70mesh 39 0.132 0.0052 0.231
80mesh 40 0.122 0.0048 0.196
90mesh 41 0.112 0.0044 0.170
100mesh 42 0.012 0.004 0.152
120X108mesh 43 0.091 0.0036 -
120mesh 44 0.081 0.0032 0.131
140mesh 46 0.061 0.0024 0.120
150mesh 46 0.061 0.0024 0.108
160mesh 46 0.061 0.0024 0.098
180mesh 47 0.051 0.002 0.090
200mesh 47 0.051 0.002 0.076
