  • Square Hole Wire Mesh

    Bolhes can supply square hole wire mesh woven with plain wire or crimped wires. Both can be used as sifting and screening fabrics. Common galvanized square hole wire mesh can be also processed into filter discs.

    Material:Black iron wire, white wire, lead wire, stainless wire

    Weaving:Weaving after, two-way separated wave bending, locked bending, flat-topped curved, two-way bending, one-way separated wave bending.

    Features:rugged,durable and so on.
    Use:used as sieves or filter screening for mining,coal plants,construction and other industries.

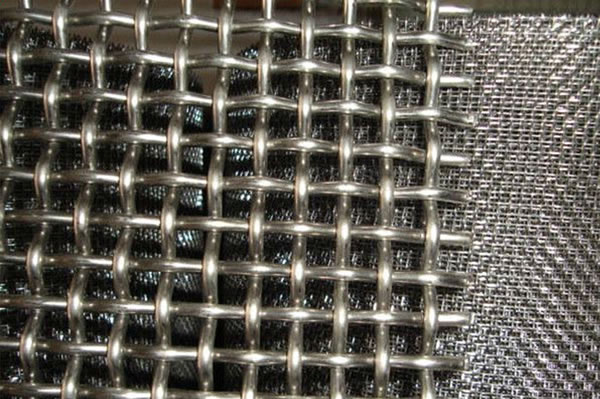

    Square Hole Wire Mesh

    Hot-dipped Galvanized Square Hole Wire Mesh

    Weaving type of Hot-dipped Galvanized Square Hole Wire Mesh: plain weaving

    Mesh: 4-30mesh.

    Wire thickness of Hot-dipped Galvanized Square Hole Wire Mesh: 0.3mm-1.6mm.

    width: 0.5-2m

    length: above 10m

    Border: closed border at both side.

    Surface finishing: galvanized before weaving or after weaving.

    Material of Hot-dipped Galvanized Square Hole: Black/Electro Gal./Hot Dip Gal. /Iron Wire /stainless steel
    Features of Hot-dipped Galvanized Square Hole: It has fine features of neat & precise, sturdy structure, durable& strongly rust-resistant and fine anti-corrosiveness.

    Applications of Hot-dipped Galvanized Square Hole Wire MeshMesh: It's widely used in industry, agriculture, building, house fencing, machinery enclosures fence, also used in filtering liquid and gas, sieving grain.

    Procedures: Hot dip Gal. before/after Weaving, Electro Gal. before/after Weaving

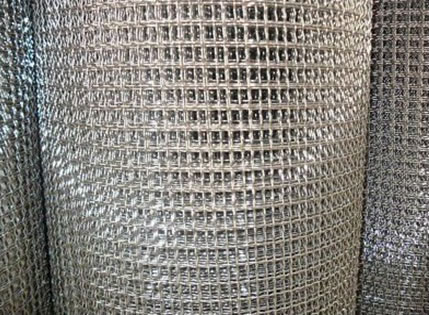

    Hot-dipped Galvanized Square Hole Wire Mesh

    Table Size for  Hot-dipped Galvanized Square Hole Wire Mesh

    Specifications of Square Wire Mesh with Plain Wire
    Opening & Wire gauge (BWG) Opening & Wire gauge (BWG)
    4meshx 20#,21#,22#, 23#,24#,25#,26#,27# 22meshx 30#,31#,32#,33#,34#,35#,36#
    5meshx 20#,21#,22#, 23#,24#,25#,26#,27#,28# 24mesh x 31#,32#,33#,34#,35#,36#
    6meshx 21#,21#,22#, 23#,24#,25#,26#,27#,28#,29# 26mesh x 32#,33#,34#,35#,36#
    8meshx 22#, 23#,24#,25#,26#,27#,28#,29#,30#,31# 28mesh x 32#,33#,34#,35#,36#
    10meshx 22#, 23#,24#,25#,26,27#,28#,29#,30#,31#,32# 30mesh x 32#,33#,34#,35#,36#
    12meshx 23#,24#,25#,26#,27#,28#,29#,30#,31#,32#,33# 32mesh x 33#,34#,35#,36#
    14meshx 27#,28#,29#,30#,31#,32#,33# 36mesh x 33#,34#,35#,36#, 37#
    16meshx 27#,28#,29#,30#,31#,32#,33#,34#,35# 40mesh x 35#,36#, 37#
    20meshx 29#,30#,31#,32#,33#,34#,35# 50mesh x 36#, 37# , 38#
    Remarks: The Width and Length of mesh could make according to customers’ request.

    Specifications of Woven Mesh with Crimped wires
    Opening Wire Gauge Width &Length   Opening Wire Gauge Width &Length
    0.2cm BWG 25-20 1.5M*30M   0.8cm BWG 22-17 1.5M*30M
    0.3cm BWG 27-18 1.5M*30M   1.0cm BWG 21-16 1.5M*30M
    0.4cm BWG 26-18 1.5M*30M   1.2cm BWG 20-16 1.5M*30M
    0.5cm BWG 25-17 1.5M*30M   1.5cm BWG 19-15 1.5M*30M
    0.6cm BWG 24-17 1.5M*30M   2.0cm BWG 18-14 1.5M*30M
    0.7cm BWG 23-17 1.5M*30M   2.5cm BWG 17-13 1.5M*30M
