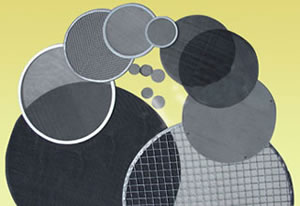

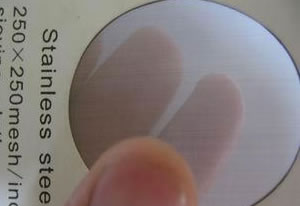

    Stainless Steel Wire Mesh Disc Stainless Steel Wire Mesh Screen


    Stainless steel wire mesh or cloth is popular filter fabric used in making of standard test sieves in labs and other industries. Stainless steel itself is corrosion resistant and acid resistant and never gets rust. This makes it an ideal material for sieving and processing in grains, medicine, food and etc.

    Commodity: Stainless steel wire mesh screen, stainless steel wire mesh, stainless steel wire cloth

    Mesh size: 2mesh-635mesh

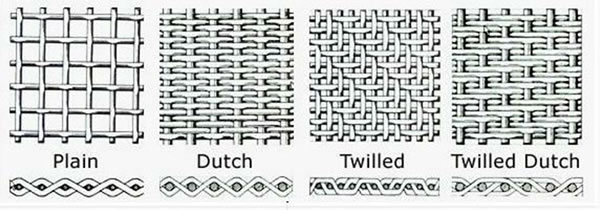

    Weave style: plain weave, twill weave, dutch weave

    Weave Style

    Characters: Acid-resisting, alkali-resisting, heat-resisting, wear-resisting etc.

    Material: SS304, 304L, 316, 316L stainless steel wire

    Standard roll width of stainless steel wire mesh: 2'' to 8"

    Standard roll length of stainless steel wire mesh: 50'' to 100"

    Other specifications of stainless steel wire mesh are also available.

    Feature: Acid-resisting, alkalinity-resisting, heat-resisting, wear-resisting and oxidize-resisting.

    Application: Stainless steel wire mesh is widely used in chemical industry, environment protection, mine industry, airspace industry, paper-making, electronic industry, metallurgy industry, food industry, pharmacy etc.

    Packing: Wrapped with moister-barrier paper, then in wooden cases.

    Specification List of Stainless Steel Wire mesh
    Mesh/Inch Wire Gauge(SWG) Aperture in mm
    3mesh x 3mesh 14 6.27
    4mesh x 4mesh 16 4.27
    5mesh x 5mesh 18 3.86
    6mesh x 6mesh 18 3.04
    8mesh x 8mesh 20 2.26
    10mesh x 10mesh 20 1.63
    20mesh x 20mesh 30 0.95
    30mesh x 30mesh 34 0.61
    40mesh x 40mesh 36 0.44
    50mesh x 50mesh 38 0.36
    60mesh x 60mesh 40 0.30
    80mesh x 80mesh 42 0.21
    100mesh x 100mesh 44 0.172
    120mesh x 120mesh 44 0.13
    150mesh x 150mesh 46 0.108
    160mesh x 160mesh 46 0.097
    180mesh x 180mesh 47 0.09
    200mesh x 200mesh 47 0.077
    250mesh x 250mesh 48 0.061
    280mesh x 280mesh 49 0.060
    300mesh x 300mesh 49 0.054
    350mesh x 350mesh 49 0.042
    400mesh x 400mesh 50 0.0385
    Roll width: 2'-8'
    Bolhes Test Sieve Co.
