  • Filter Wire Mesh, Stainless Steel as Popular Material

    Fine woven wire cloth is usually used as filter cloth or processed into filter elements in the forms of discs, cylinders or filter baskets. Hence, it is also called filter wire mesh/cloth. Some weaving patterns applied as photo attached.

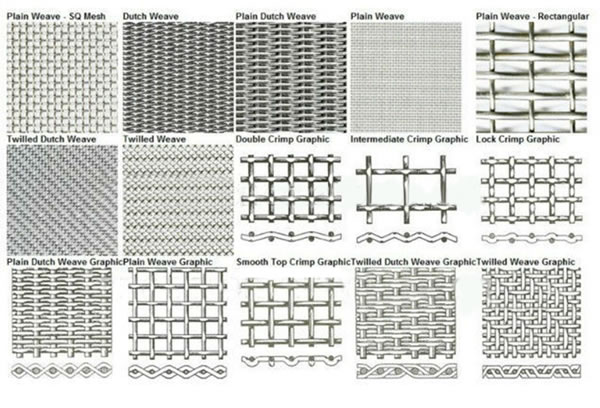

    Weave

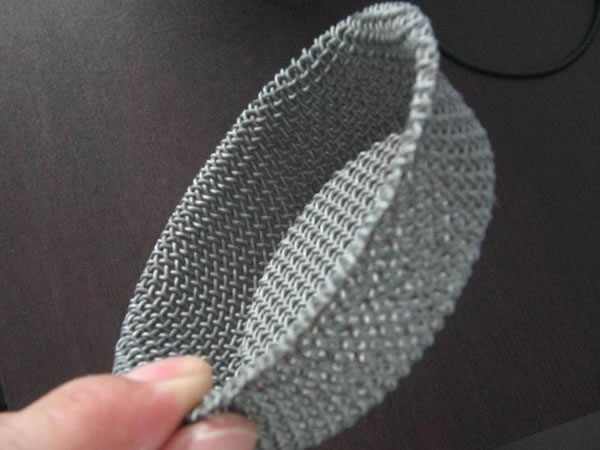

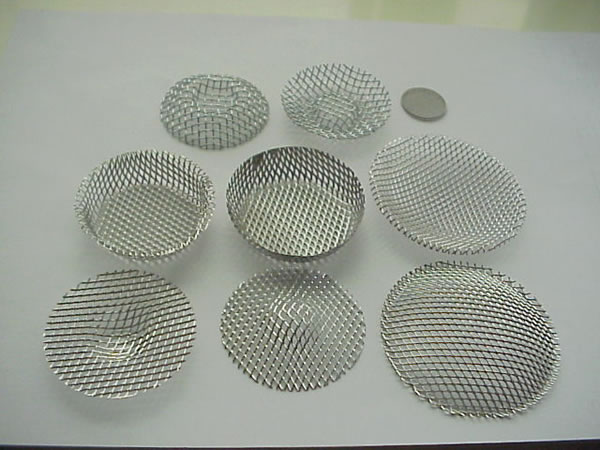

    Wire Mesh Processed Filter Screen

    Material of Filter Wire Mesh: Stainless steel wire AISI 304, 316 or 316L, copper wire, aluminium wire, nickel wire, polyester yarn, etc. Stainless steel AISI 304 and 316 are the most popular materials for filter mesh products.

    Surface treatment: Polishing, Electric galvznized ,hot dipped galvanized ,or sprayed,black annealed,

    Weaving and welding process of wire mesh filter: We have our own department for R&D,there are many kinds of products for your reference. you can also offer us the samples or your designs

    filter wire mesh application

      Wire Mesh Filter

    mesh Wire Dia.(um) Micron retention(um) Porosity theor(%) Weight(kg/) Cloth thickness(mm)
    Warp weft Nominal absolute
    720×140-150 35 110 15 16-20 52 0.65-0.70 0.15-0.18
    625×125-130 42 120 17 22-26 53 0.75-0.85 0.20-0.22
    600×100-105 42 145 25 34-38 57 0.75-0.80 0.22-0.23
    280×60-70 90 200 40 54-60 56 1.34-1.55 0.38-0.40
    175×40-50 150 300 60 65-72 55 2.10-2.40 0.57-0.60
    130×30-35 200 380 80 95-105 57 2.70-3.10 0.77-0.80
    175×37 --- --- 80 100-106 54 2.10 0.57
    170×40 --- --- 90 106-118 54 2.10 0.57
    260×40 --- --- 125 112-125 54 2.25 0.62
    84×14 --- ---- --- 450-530 62 3.50 0.15
