Stainless Steel 316 Test Sieves Information

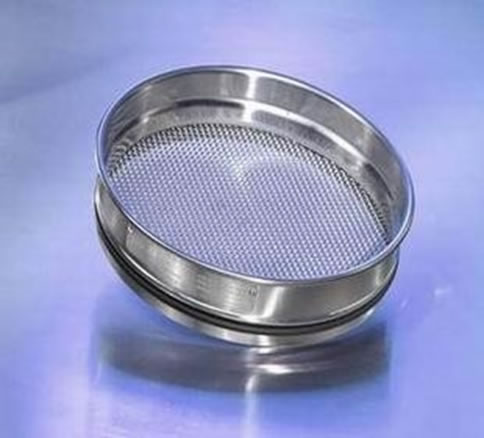

Stainless Steel 316 Test Sieves

Also named:  square mesh test sieve , woven wire test sieve, sand wire test sieve, etc.

Cloth material : AISI 316/316L , galvanized , brass , etc.

Wire dia : 0.025--2.0mm

Diameter : 3'' , 6'' , 8'' , 10'' , 12'' , 200mm , 300mm , etc.

Mesh : 5--500mesh

Aperture/Opening :10--200µm

Frame material : Brass , Stainless steel ,galvanized , etc .

Frame height (full) : 1-3/4'' -- 2-5/8''      half : 1-1/4'' -- 1-5/

Testing Sieve Specification
Sieve Material   AISI304/316/316L,brass,galvanized,etc.
Technology Woven,Punching.
Standard ASTM E11-09     ISO3310-1
Sieve Diameter 3" 6" 8" 10" 12" 200mm 300mm
Frame Material Brass , stainless steel ,galvanized,etc.
Height (full) 1-3/4'' -- 2-5/8''
Sieve Shape Round
Mesh opening / Aperture 5--500mesh    10--200μm

Bolhes Test Sieve Co.
