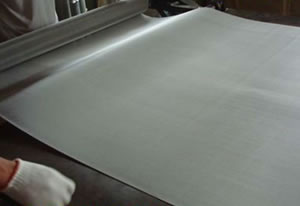

  • Dutch Woven Wire Mesh Cloth

    Wire Materials for Dutch Woven Wire Mesh Cloth: Mild steel wire, brass wire, nickel wire, stainless steel wire(302,304,304L,316,316L,etc.), polyester fiber. This is a fine filter cloth with micron filtration ratings.

    We supply wire mesh high precision micron test sieves made of stainless steel Dutch wire cloth, square mesh, brass mesh or bolting cloth.

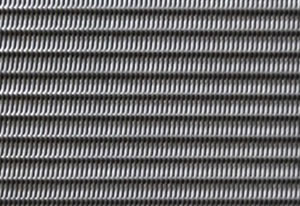

    Dutch Woven Wire Mesh Cloth Wire Cloth

    Typical Weaving Patterns: Dutch plain, Dutch twill, Dutch reverse.

    specification details for Dutch Woven Wire Mesh Cloth

    Wire Mesh Plain Dutch Weave
    Gauge Mesh Wire Diameter Reference values of particles passed
    40 10x64 0.55x0.42 260
    50 12x75 0.45x0.35 220
    80 24x110 0.35x0.25 160
    100 25x140 0.28x0.20 100
    120 30x150 0.25x0.18 80
    140 35x180 0.20x0.16 70
    160 40x200 0.18x0.13 60
    180 45x220 0.16x0.12 56
    200 50x250 0.15x0.11 50
    240 60x300 0.14x0.09 45
    260 65x320 0.13x0.08 36
    280 70x400 0.125x0.07 34
    300 80x700 0.11x0.039 32

    Wire Mesh Twilled Dutch Weave
    Gauge Mesh Wire Diameter Reference values of particles passed
    80II 20x250 0.28x0.2 38
    120II 30x300 0.25x0.18 36
    200II 50x500 0.14x0.11 34
    320I 80x700 0.11x0.08 32
    320II 80x780 0.10x0.07 30
    360 90x780 0.10x0.07 25
    400I 100x780 0.10x0.07 22
    400II 100x900 0.10x0.063 20
    500 120x1100 0.07x0.05 17
    630 150x1400 0.063x0.04 16
    650 180x1800 0.07x0.04 14
    685 165x1400 0.063x0.032 13
    795I 200x1400 0.07x0.04 12
    795II 200x1800 0.05x0.032 10
    850 2l0x1900 0.045x0.03 10
    1000 250x2000 0.045x0.028 8
    1125 280x2200 0.036x0.026 7
    1225 300x2200 0.036x0.026 6
    1280 325x2300 0.035x0.025 5
    1600 400x2800 0.03x0.018 3

    Reverse Dutch Weave Wire Cloth Specification
    Mesh Count
    Warp x Weft
    Wire Dia mm
    Warp x Weft
    Wire Dia inch
    Warp x Weft
    Open Area % Micron Rating
    63 x 18 0.4000 x 0.6000 0.0157 x 0.0236 60 220
    107 x 20 0.2400 x 0.6000 0.0094 x 0.0236 58 210
    170 x 40 0.2000 x 0.4500 0.0079 x 0.0177 58 130
    132 x 32 0.2000 x 0.4000 0.0079 x 0.0157 55 105
    171 x 46 0.1500 x 0.3000 0.0059 x 0.0118 54 85
    290 x 75 0.0900 x 0.2000 0.0035 x 0.0079 53 55
    615 x 102 0.0400 x 0.1600 0.0157 x 0.0063 41 42
    615 x 130 0.0400 x 0.1300 0.0157 x 0.0051 49 22
    720 x 150 0.0360 x 0.1000 0.0014 x 0.0039 54 17
