  • Bolting Cloth

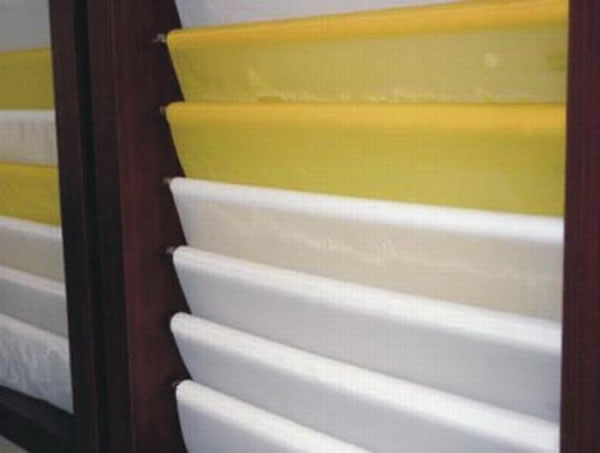

    bolting cloth

    Polyester bolting cloth is a fine fabric used for flour mill filter mesh or printing screen.

    Technical Information:
    Material
    : 100% polyester

    Mesh Count: 6T (15mesh) to 165T (420mesh)

    Width: 0.9m to 3.9m

    Color: white, yellow and black

    Min Order: 150m

    Package: PVC bag per roll, 4 rolls or 6 rolls per carton.

    Application: widely used in printing,platemaking,filtering in the fields of electron, textile,ceramics,glass and filtering usages in the industry of space flight,oil etc.

    Specification(cm) Mesh Count/ Inch Wire Diameter(um) Width of Mesh-opening(um) Open Area(%) Suggestion Highest Tension (N)
    8T 20 350 900 52 66
    10T 25 250 700 49 66
    15T 38 250 514 52 61
    24T 60 150 267 41 56
    32T 80 100 213 46 54
    40T 100 80 170 46 37
    43T 110 80 153 43 35
    48T 120 70 134 60 47
    54T 137 64 125 44 40
    61T 155 64 100 37 41
    64T 160 64 92 35 42
    68T 175 64 83 32 40
    72T 180 55 84 37 38
    77T 195 55 75 33 33
    80T 200 48 77 38 34
    90T 230 45 72 42 30
    100T 250 40 61 37 32
    110T 280 40 52 33 34
    120T 300 34 47 32 34
    140T 350 34 37 24 33
