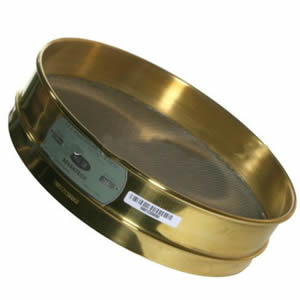

  • Brass Wire Mesh Sieves

    Brass wire mesh sieves are also named as brass sieve, brass woven wire test sieve, brass wire testing sieve, etc.

    It is made of brass wire cloth screen woven into square holes as sifting and filtering media, manily used for chemical, cosmetics, general industrial, fertilizer, foods ( grain , coffee ), minerals,etc.



    Wire dia: 0.025--2.0mm

    Diameter : 3'' , 6'' , 8'' , 10'' , 12'' , 200mm , 300mm , etc.

    Mesh : 5--500mesh

    Aperture/Opening :10--200µm

    Frame material : Brass , Stainless steel, galvanized , etc.

    Frame height (full) : 1-3/4'' -- 2-5/8'' half : 1-1/4'' -- 1-5/8''

    Depth to cloth (full) : 1-1/4'' -- 2''   half : 5/8'' -- 1''


    Brass Mesh Lab Test Sieving Screen

    Brass Test Sieves Specification
    Sieve Material Brass Wire Mesh
    Technology Woven
    Standard ASTM E11-09      ISO3310-1
    Sieve Diameter 3" 6" 8" 10" 12" 200mm 300mm
    Frame Material Brass , stainless steel ,etc.
    Height (full) 1-3/4'' -- 2-5/8''
    Aperture shape Square
    Mesh opening / Aperture 5--500mesh    10--200μm
    Bolhes Test Sieve Co.
