Standard Soil Test Sieves and Specifications

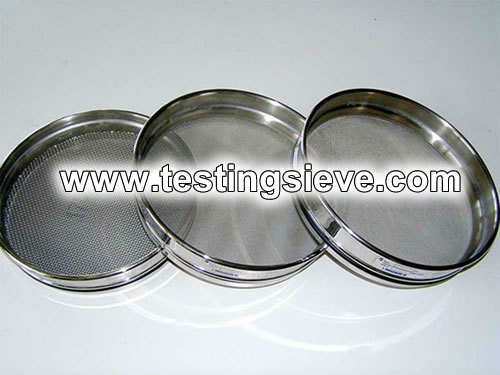

Metal Sieving Mesh for Soils
Iron Mesh Sieves for Soil Testing, Model:  Φ200×50mm

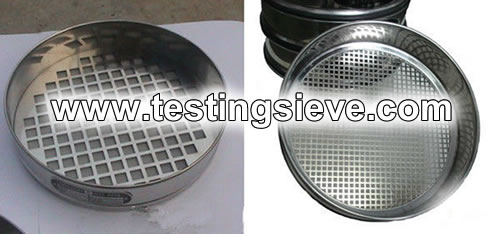

Perforated Metal Mesh Sieves
Round Frame Perforated Metal Mesh Soil Sieves 30 cm, SS SUS304

Metal mesh soil sieves have small size and light weight, allowing for high efficiency & high accuracy lab testing. Bolhes supplies soil sieves in two types: full depth test sieves and half depth sieves. The depth refers to the distance from the cover of the sieves o top of the sieve frame to the wire mesh fabric it uses for filtering. Bolhes test sieves full depth can be 1-1/4” to 2” and the half depth can be 5/8” to 1”.

Basic Information:

1.Wire Mesh Cloth Material applied for soil sieves: Brass wire , stainless steel grade AISI 304/316/304L/316L , galvanized steel, etc.
2.Wire diameter : 0.025--2.0mm
3.Soil Sieve Diameter : 3'' , 6'' , 8'' , 10'' , 12'' , 200mm , 300mm , etc.
4.Mesh : 5--500mesh
Aperture/Opening :10--200µm
5.Soil Sieve Frame Material : Brass , Stainless steel ,galvanized , etc .
6.Frame height (full) : 1-3/4'' -- 2-5/8''      half : 1-1/4'' -- 1-5/8''
7.Full Depth to wire mesh cloth: 1-1/4'' -- 2''; half depth: 5/8'' -- 1''

Feature of Laboratory Soil Testing Sieves :

•Acid and alkali resistance,
•High temperature resistance•Non-magnetic
•Uniform aperture size
•Long time use
•Small orders accepted

Classification of Laboratory Soil Testing Sieves :

  • Flour sieve, grain sieve, sugar sifter
• Sand sieve, stone sieve, soil sieve, casting sieve, decimate sifter
• Asphalt sieve, concrete sieve, cement dry sieve, limestone sieve, way slag sieve, aggregate sieve for bituminous pavement
• Pharmaceutical sieve and other industry-specific sieves

Application of Laboratory Soil Testing Sieves :

•Agriculture, biology, chemistry
•Plastics, construction materials, engineering
•Electronics, environment, food, geology
•Metallurgy, glass
•Ceramics, medicine
•Pharmaceuticals.

Testing Sieve Specification
Sieve Material Brass, AISI304/316/316L,galvanized,etc.
Technology Woven
Standard ASTM E11-09      ISO3310-1
Sieve Diameter 3" 6" 8" 10" 12" 200mm 300mm
Frame Material Brass , stainless steel ,etc.
Height (full) 1-3/4'' -- 2-5/8''
Aperture shape Square
Mesh opening / Aperture 5--500mesh    10--200μm

Case Study of Soil Test Sieves:
12" sieve and 200mm soil sieve are produced by the standard ISO 3310-1/2:2000. The aperture sizes are from 3.35mm to 0.038mm. The frames and covers are made of stainless steel while the wire cloth is in all kinds of material such as brass, bronze, stainless steel and copper.
