    Item Description
    Introduction Lab stainless steel sieve shaker is incorporating the powder classification and liquid filtration. It is suitable for particles distribution analysis of grains, powder or the solids content test of the liquid in laboratory and Quality Control Department.
    Voltage and frequency 220V/110V, 50/60HZ, single phase
    Power source one set of vertical vibration motor
    Diameter 200mm, 300mm
    Including main unit, top cover (pan), catchers (collector) and sieves with different mesh.
    Materials Main unit is made of common steel
    Top cover, catcher and sieve are SUS304
    Function Size analysis of powder, particles

    Features of the model of stainless steel sieve shaker

    1. High efficiency, smart design.
    2. It has a compact structure, and it is suitable for any kinds of powders and serenity.
    3. Small volume, easy to be moved.
    4. Low noise, high precision, accurate mesh.
    5. The products can be automatic shut down according to the electric time controller.

    Technical parameters

    No. Item Unit Data
    1 Sieves Layer 8
    2 Diameter mm 200
    3 Material size mm 0.038-3
    4 Noise db less than 50
    5 Inventory rating G less 200
    6 Vibration amplitude mm 2-5
    7 Vibration motor Voltage V 220-240
    Rotate speed Rpm 1400
    Power KW 0.12
    8 Overall dimension
    (length*width*height)
    mm 300×360×736
    9 Net weight kg 37

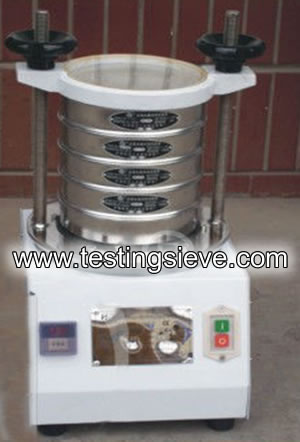

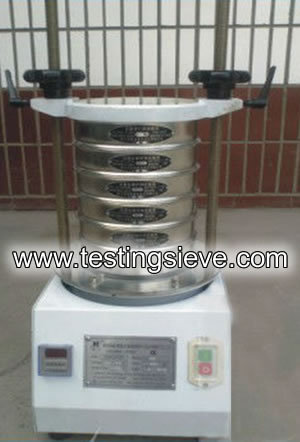

    Some pictures of the stainless steel sieve shaker

    stainless steel sieve shaker sieve shaker
