  • Grid Sieves

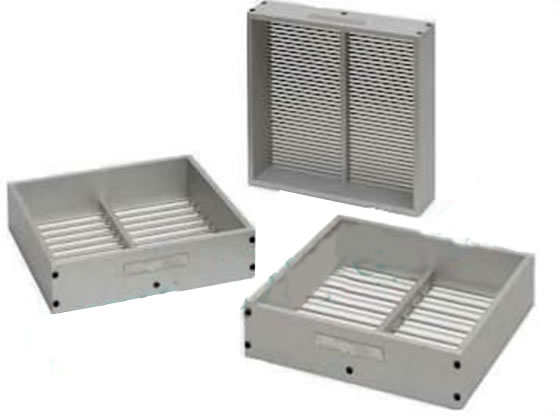

    Grid sieves are used for the determination of particle shape, flakiness index of aggregates.

    Made from stainless steel with outer dimensions of 300 x 300 x 75 mm. The cylindric rod bars with 5.0 mm diameter are arranged parallel.

    Feature: Light structure, solid and corrosion-resistant , long life.

    Main technical parameters:
    1. Model: Grid-8
    2. Dimensions: 300x300x75 mm
    3. Slot width : 8 mm
    4. Dia of material : 16mm-12.5mm
    5. Net weight: 2.5 kg
    6. Standard: Confirming to EN933-3:1997

    Grid Sieves

    Application:
    Size : 300×300mm, Grid with 5mm diameter are fixed on metal frame
    Made from stainless steel , light structure, solid and corrosion-resistant , Long life .

    Optional Sizes:
    Item No Grid width Dia of material Net weight
    Grid-2.5 2.5 5mm-4mm 3.2kg
    Grid-3.15 3.15 6.3mm-5mm 3.1kg
    Grid-4 4 8mm-6.3mm 2.9kg
    Grid-5 5 10mm-8mm 2.8kg
    Grid-6.3 6.3 12.5 mm-10mm 2.6kg
    Grid-8 8 16mm-12.5mm 2.5kg
    Grid-10 10 20mm-16mm 2.3kg
    Grid-12.5 12.5 25mm-20mm 2.2kg
    Grid-16 16 31.5mm-25mm 2.1kg
    Grid-20 20 40mm-31.5mm 2kg
    Grid-25 25 50mm-40mm 1.9kg
    Grid-31.5 31.5mm 63mm-50mm 1.8kg
    Grid-40 40mm 80mm-63mm 1.7kg

    Model Application Sieves opening (mm) Frame
    FB-2 Soil analysis sieve 0.075; 0.15; 0.3; 0.6; 1.18; 2.36; 4.75; 9.5 Ø 200 x 50mm
    FB-3 Sand analysis sieve 9.50,4.75,2.36,1.18,600um,300um,150um Ø 300 x 75mm
    FB-4 Stone analysis sieve 2.36,4.75,9.50,16.0,19.0,26.5,31.5,37.5,53.0,63.0,75.0,90.0 Ø 300 x 75mm
    FB-5 Asphalt analysis sieve 0.075; 0.15; 0.3; 0.6; 1.18; 2.36; 4.75; 9.5; 13.2; 16; 19; 26.5; 31.5; 37.5; 53 Ø 300 x 75mm
    FB-6 Wash sieves dia 120mm, 0.75mm
    FB-7 Cement Sieves

    Packaging & Shipping

    Packing Material: Plywood Case meeting export long transport requirement.

    Packing Method: Horizontal Packing to saving more shipping cost.

    Shipping: within 5-10 days after receive 100% payment.

    Shipping way: shipped by sea or Air is avaliable.
